Printer MEGA IIDirect printing on foils and cardboards

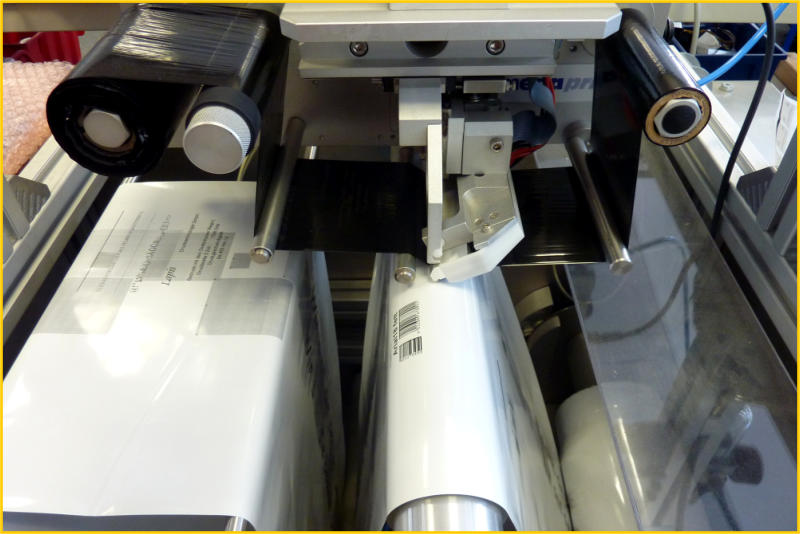

The direct printer Mega II is a thermal printer to print on foils, paper, and cardboard and has been developed especially for industrial usage in product casing and labeling. It combines high reliability with a long life span. The compact design of its components enables it to be built in position-independent into automatic packaging machines as well as film and bagging systems.
Features- Allows for direct printing on packaging films, cardboard, and blister. - Freely combinable, compact module for installation in automated packaging. - Rugged construction for continuous industrial use. - Versions for externally pulsed and continuous printing by digital encoder. - Print design can include texts, barcodes, logos, and images thru Windows* drivers
Technical DataPrint speed: max. 600mm/s, depending on print width Print Resolution: 302dpi Printing width: 2/5/8 inch Interface: RS232, RS485, USB 1.0, SPS for machine control Dimensions: 380 x 230 x 180mm (L x H x W) Weight: 20kg Power supply: 220V, 50Hz, 200VA Ambient temperature : 0 ° ... 45 ° C
