Our "smallest" laminator yet: A compact product from our series of laminators for plastic cards for challenging applications in the
industrial sector. Developed with our substantial know-how, manufactured with care and distinction in Germany, and incorporating
only high-quality materials. Add-on optional modules, Feeder and Flipper, are available; as well as an OEM-version.
Technical Data
•
Heated laminating roll, temperature controlled by
sensor
•
Laminating speed: up to 20mm/s
•
Card material: PVC, PE, PC
•
Size: 245 x 173 x 190mm (HxWxD)
•
Weight: 5.8 kg
•
Ambient temperature: +10°C to +40°C,
non-condensing humidity 20-80%
Features
•
roll laminator
•
laminate on plastic cards according to ISO 7810 (54 x 85.6 mm)
•
laminates thin film and patch
•
laminates both-sided by automatic detection with different patches
for front and back
•
panel, windows-tool and interface for operating and controlling
•
customizable parameters for different card materials and foils
(including temperature and speed)
•
Optional: Card feeder for a maximum of 120 cards.
•
Optional: Flipper for both-sided card lamination.

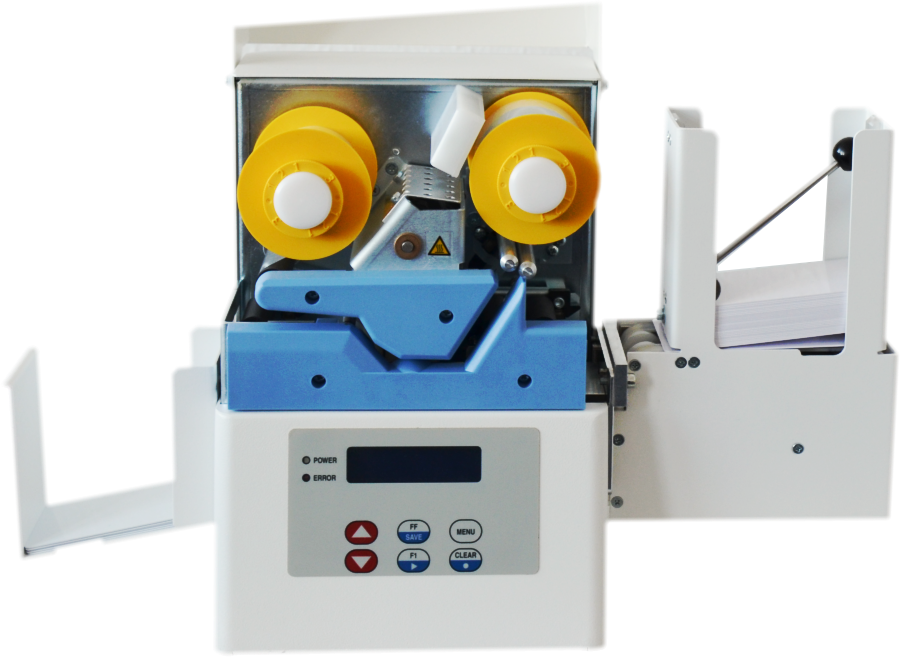

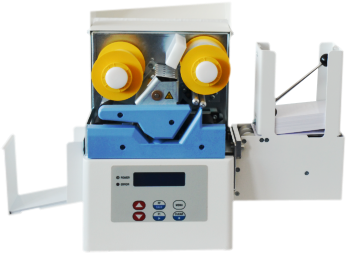

Optional: LXS II with card feeder

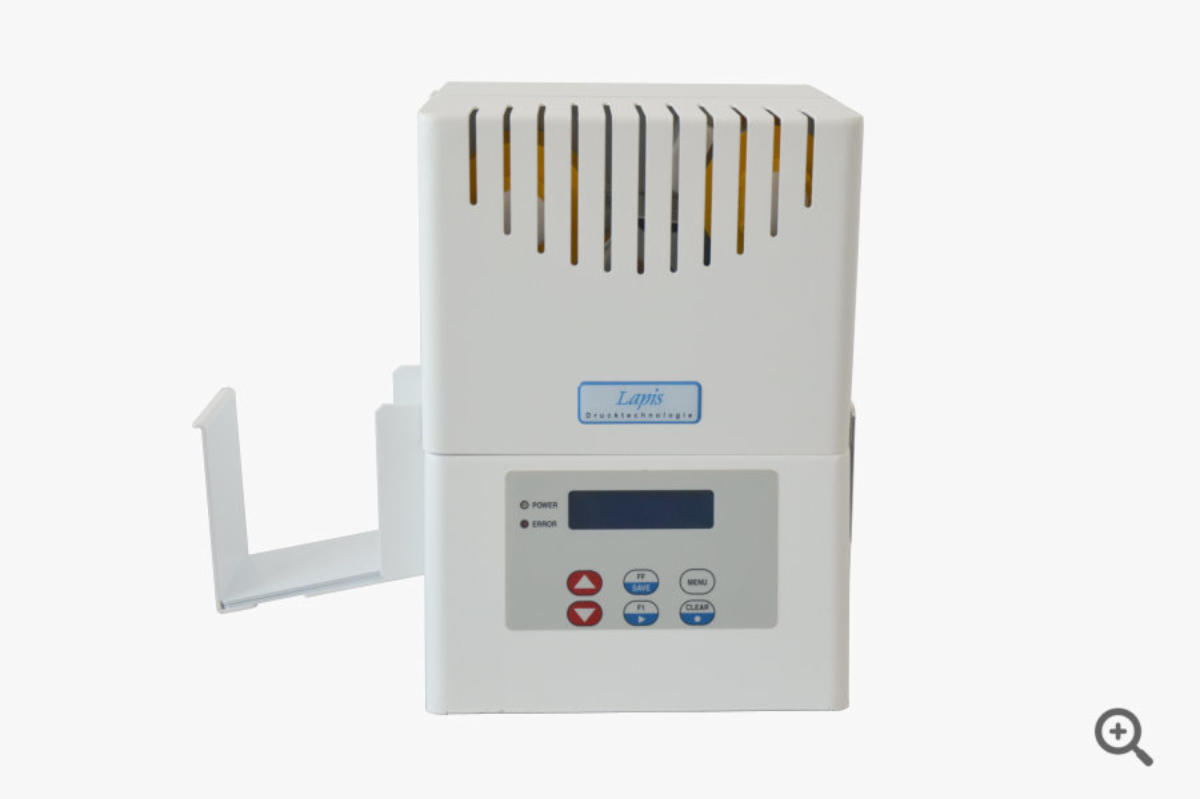

Card Laminator LXS II
Flexible laminator for industrial applications

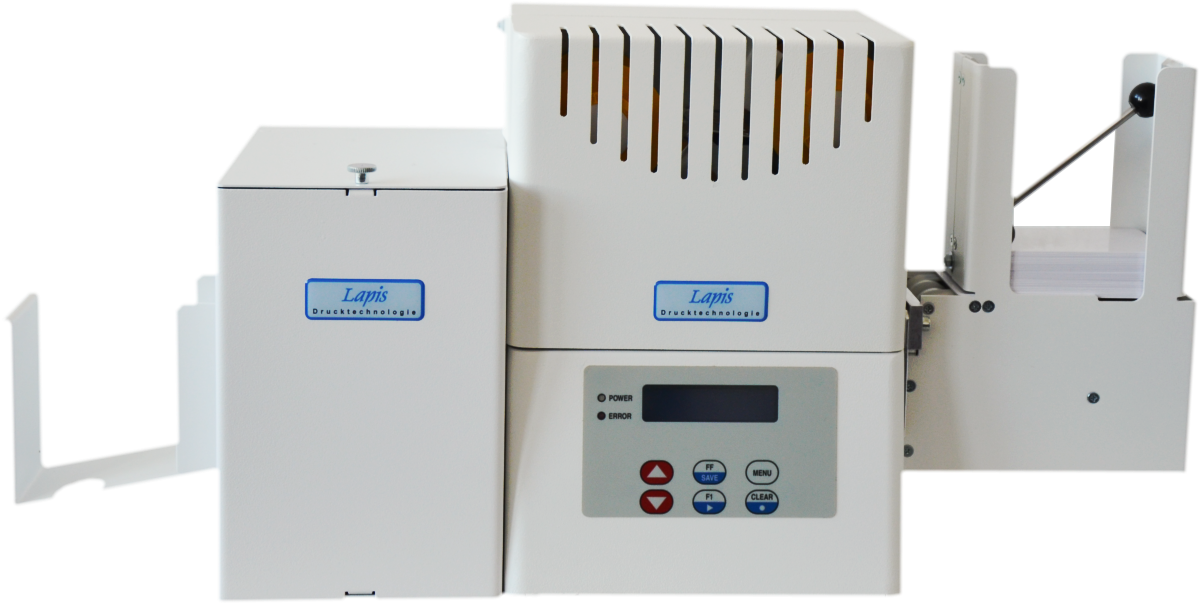

Optional: LXS II with card feeder and flipper for
both-sided card lamination
Optional: LXS II as OEM
