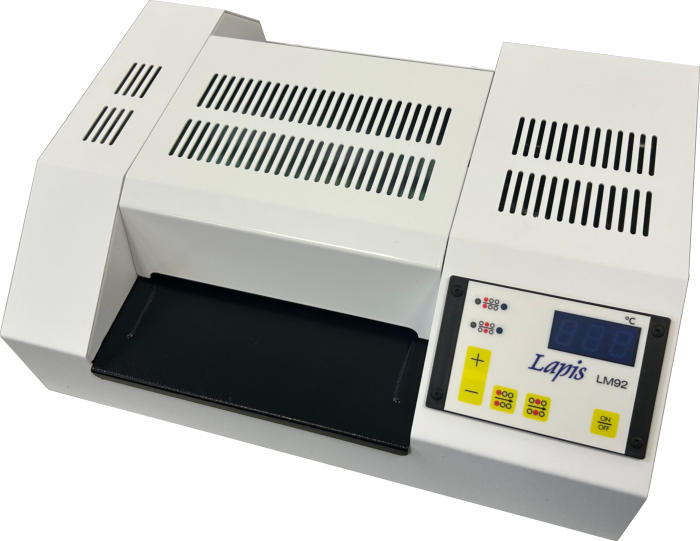

Passport Laminator LM92
Quadra-Hybrid- Passport Laminator
Support
Quality control
Lapis as your reliable partner
Lapis develops and manufactures printers and laminators as
stand-alone units or as OEM-modules for governmental
institutions, industry clients, and organizations. Read more…
All working steps are checked by the production up to the
dispatch about a strict high-class control and are held on.
Beside software, drivers and firmware we offer to you here
also detailed documentations to our products to the
download. Read more…
All contents copyright 2024 Fa. Lapis
All rights reserved.
Lapis Drucktechnologie GmbH
Chemnitzer Straße 1
D-68309 Mannheim
e-mail: info@lapis-online.de
phone: +49(0)621/7363866
Products
Contact
This new generation Lapis high quality laminating machine is specially designed for laminating a wide range kind of
passport booklets including the E-passports and attached laminating foils.
The LM92 has an adjustable temperature and a pre-set laminating speed, adjusted to specific applications to guarantee
perfect end-result. The Quadra Hybrid-heating technology implicated that the machine has two heating stations with each
2 heaters. This system is extremely suitable for the nowadays often applied thin gauge holographic films. The front and
back temperatures are individually adjustable in order to get the best result in every application.
Temperature as well as speed is stable (Temp: +/- 2ºC) during the whole laminating process.
The digital display tells the exact temperature. The unique processor garantees superb temperature stability by means of a
unique combination of hybrid heater elements with positioned temperature controller. Thanks to a special coating, the
passports documents can be inserted without carrier and leave the machine undamaged
Unique Features
- Hybrid Heating System
- Integrated Temperature Sensor is integrated in the heating elements and constantly measures the exact
temperature of the heating elements. It feeds the controller board with very accurate information about
the heating. Hence, the PCB is capable of constantly sending small adjustments to the heating making
sure the system delivers constant laminating temperature throughout the entire process.
The temperature amplitude never exceeds +/- 2°C.
- Easy Operation due to pre-adjusted settings which can be blocked for unwanted operator intervention.
- High Speed Temperature Adjustment - quick warm-up time
- Diamond-coated, teflonized heating elements for scratch-resistant performance and cover protection
- Extremely high lamination accuracy
- CE Standard Conform
- Quadra Heating system with two heating stations and unique 6 roller-system for secure lamination
- Handles thin gauge and special holographic films and many different passport booklet sizes
Laminating width:
150mm
Laminating velocity:
max. 150mm/min
Temperature range:
0-190ºC
Power supply:
220/240V, 50/60Hz
Power consumption:
825W
Temperature adjustment:
electronically hybrid (PCB)
Dimensions in mm:
295 x 365 x 140 mm
Weight:
10 kg
Technical Data:
