Technical Data
•
Heated laminating roll, temperature controlled by
sensor
•
Laminating speed: up to 20mm/s
•
Card material: PVC, PE, PC
•
Size: 220 x 350 x 240mm (HxWxD)
•
Weight: 10 kg
•
Ambient temperature: +10°C to +40°C,
non-condensing humidity 20-80%
Features
•
roll laminator, solid metal construction
•
laminate on plastic cards according to ISO 7810 (54 x 85.6 mm)
•
laminates thin film and patch
•
laminates both-sided by automatic detection with different patches
for front and back
•
panel, windows-tool and interface for operating and controlling
•
customizable parameters for different card materials and foils
(including temperature and speed)
•
Optional: Card feeder for a maximum of 120 cards.
•
Optional: Integrated flipper for both-sided card lamination.

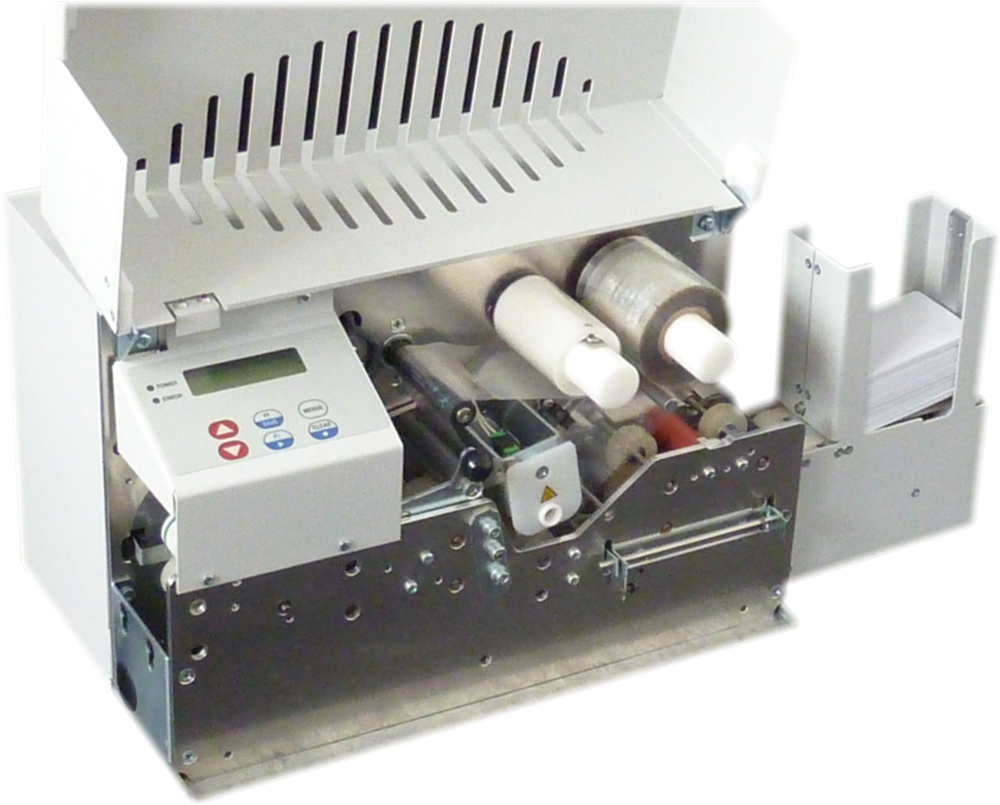

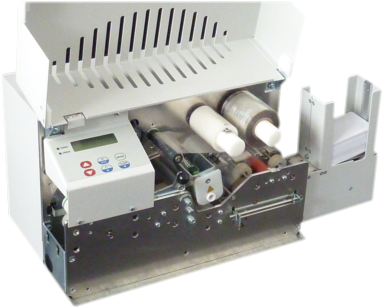

Optional: Lamina006 with card feeder
Card Laminator Lamina006
Flexible laminator for industrial applications

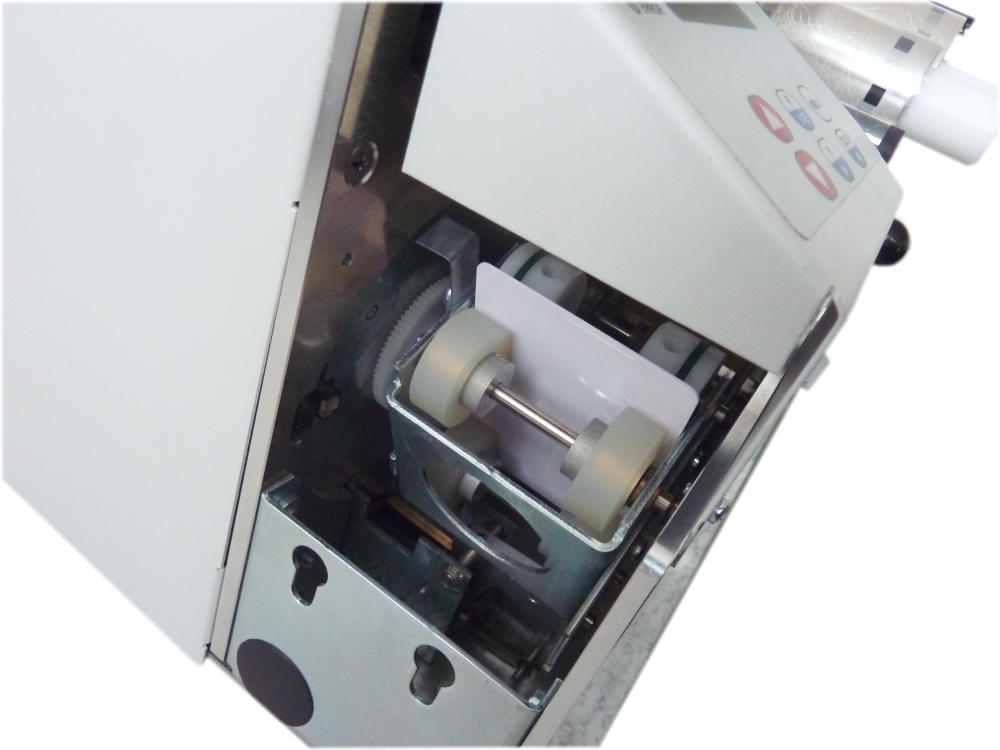

Optional: Lamina006 with integrated flipper for
both-sided card lamination
Robust stand-alone laminator. The Lamina006 covers all requirements of ISO 7810 plastic card applications. Quality and
toughness are the highest priorities of this laminator. A flipper allowing for both-sided lamination is optional integrated. A
card feeder is available as an add-on module.
