A compact product from our series of laminators for plastic cards for challenging applications in the industrial sector.
Developed with our substantial know-how, manufactured with care and distinction in Germany, and incorporating only high-
quality materials. Add-on optional modules, Feeder and Flipper, are available; as well as an OEM-version.
Technical Data
•
Heated laminating roll, temperature controlled by
sensor
•
Laminating speed: up to 20mm/s
•
Card material: PVC, PE, PC
•
Size: 355 x 175 x 185mm (HxWxD)
•
Weight: 7.6 kg
•
Ambient temperature: +10°C to +40°C,
non-condensing humidity 20-80%
Features
•
roll laminator
•
laminate on plastic cards according to ISO 7810 (54 x 85.6 mm)
•
laminates thin film and patch
•
laminates both-sided by automatic detection with different patches
for front and back
•
windows-tool and interface for operating and controlling
•
customizable parameters for different card materials and foils
(including temperature and speed)
•
Optional: Card feeder for a maximum of 120 cards.
•
Optional: Flipper for both-sided card lamination.

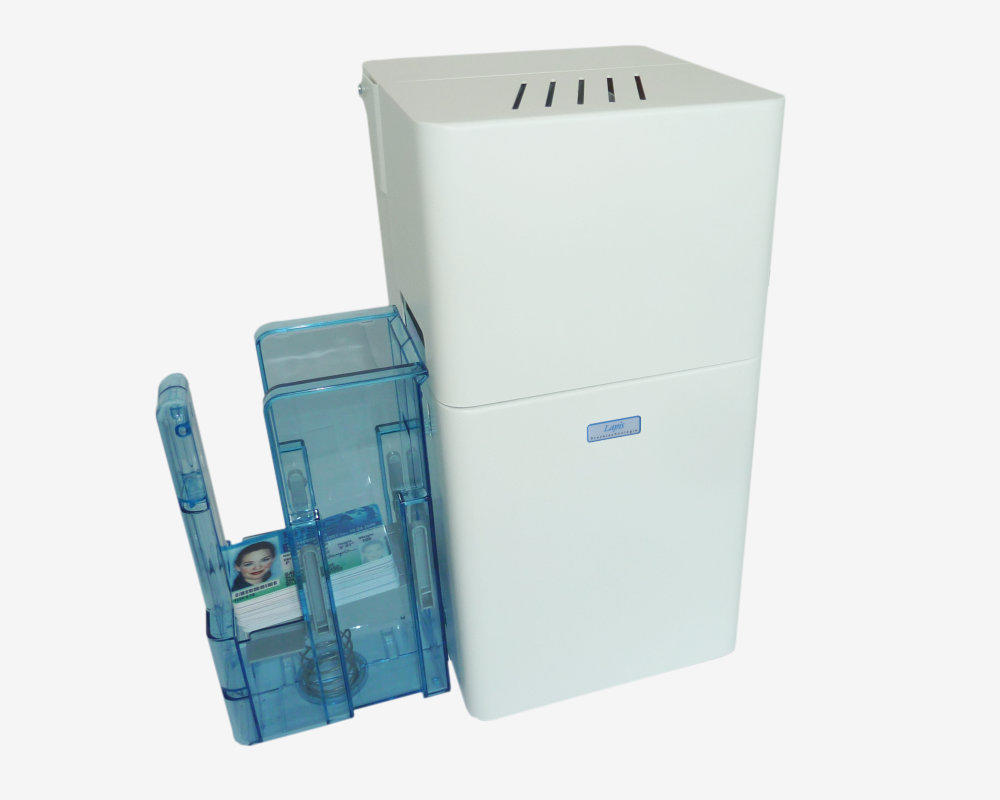

Optional: L201 with card feeder
Card Laminator L201
Flexible laminator for industrial applications

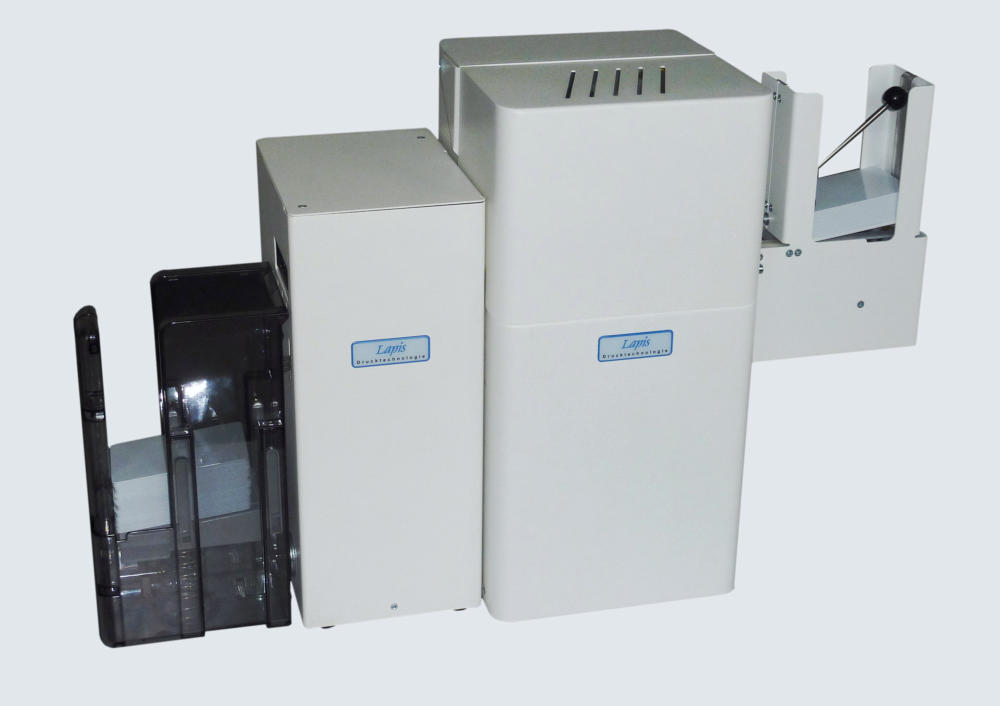

Optional: L201 with card feeder and flipper for
both-sided card lamination

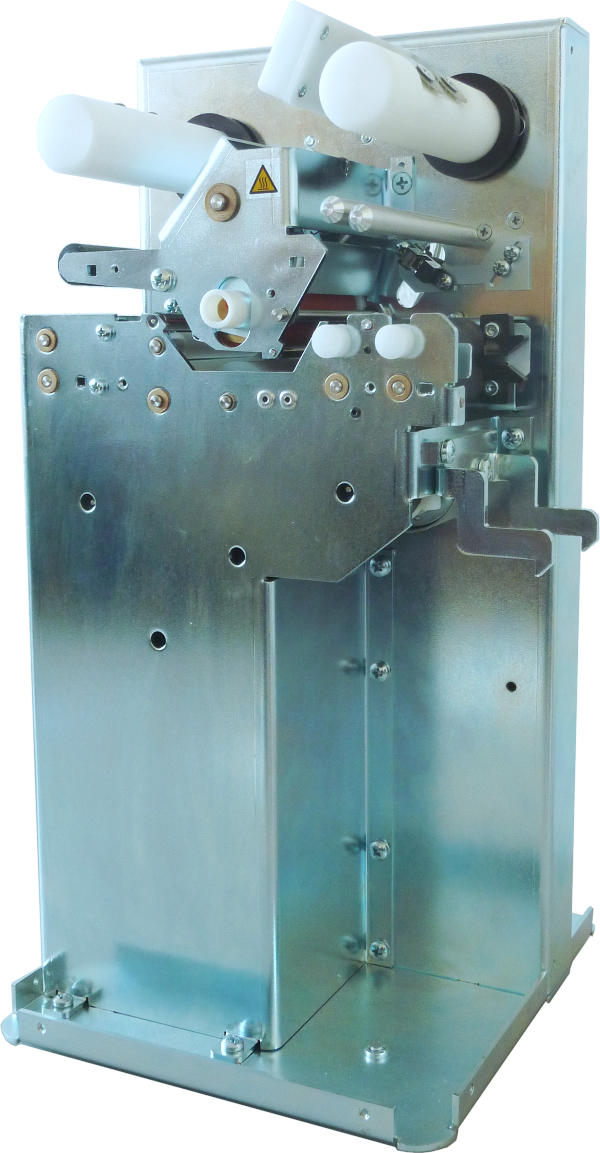

Optional: L201 as OEM
Support
Quality control
Lapis as your reliable partner
Lapis develops and manufactures printers and laminators as
stand-alone units or as OEM-modules for governmental
institutions, industry clients, and organizations. Read more…
All working steps are checked by the production up to the
dispatch about a strict high-class control and are held on.
Beside software, drivers and firmware we offer to you here
also detailed documentations to our products to the
download. Read more…
