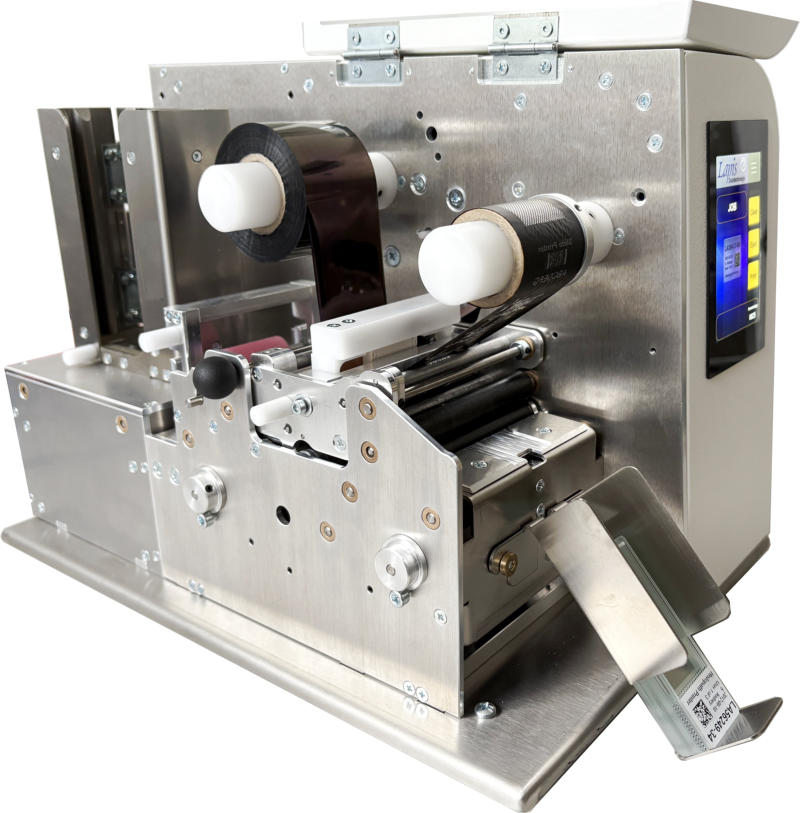

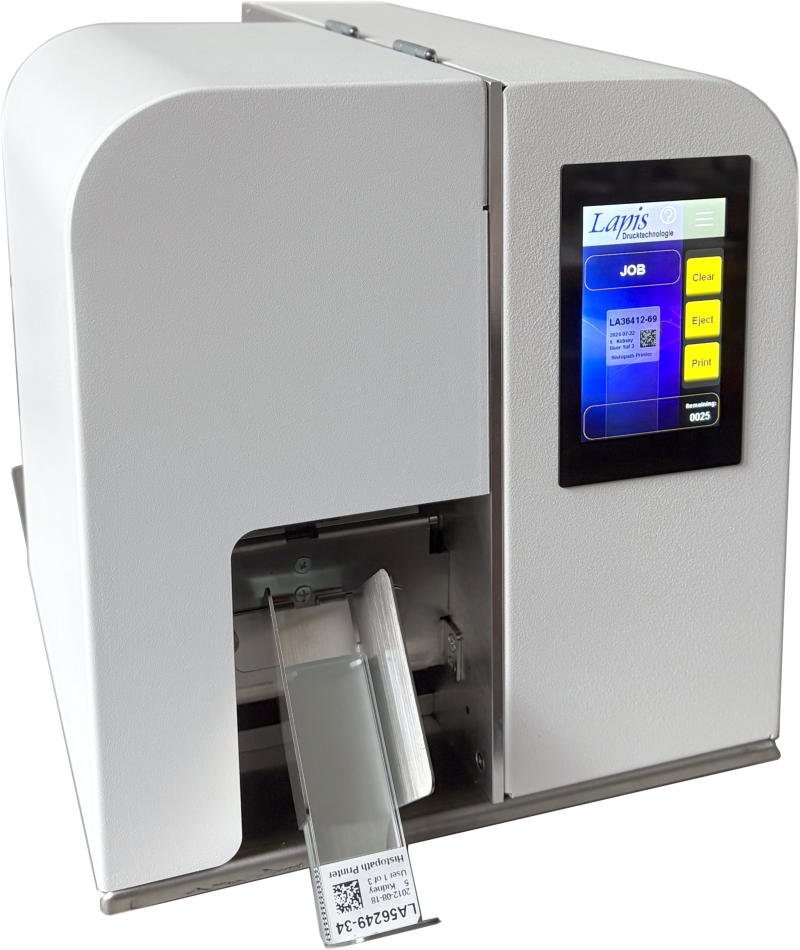

HISTOPATH Slide Printer
Histopathologie printer for Microscope Slides
Key Features and Benefits
•
Versatile monochrome printer for Standard Microscope Slides with coloured coated end as print area.
•
High resolution and print quality with 300dpi and full surface printing.
•
Compact and robust design in metal casing for demanding industrial and commercial applications.
•
Integrated slide feeder with exchangeable magazines for different colors.
•
Print on demand from frontside of the printer
Printer
•
Direct-to-slide thermal transfer
•
Single-sided printing
•
full surface printing
•
Monochrome printing capability
•
300dpi (11,8 dpm)
•
~ 800 slides/h
Microscope Slide
•
Slide type: glass, 45° clipped corners
•
Slide thickness: 1mm
•
Slide format: 76mm x 26mm
•
Integrated slide feeder: max. 100 (200) slides
•
External exchangeable magazines
•
Manual single feed: 1 slide input
•
10000 slides / foil
Interface
•
USB2.0
•
LAN
Driver & Software
•
Operating system
- Windows 7, 8, 8.1, 10 (32-/64-bit)
•
Font: True Type Fonts via Windows Drivers
Power
•
AC 100V ~ 240V, 50/60Hz
•
Ambient temperature: +10°C to +40°C,
non-condensing humidity 20-80%
Printer Dimension and weight
HxWxD(mm): 237x229x325
Weight: 9,5kg
Support
Quality control
Lapis as your reliable partner
Lapis develops and manufactures printers and laminators as
stand-alone units or as OEM-modules for governmental
institutions, industry clients, and organizations. Read more…
All working steps are checked by the production up to the
dispatch about a strict high-class control and are held on.
Beside software, drivers and firmware we offer to you here
also detailed documentations to our products to the
download. Read more…
All contents copyright 2021 Fa. Lapis
All rights reserved.
Lapis Drucktechnologie GmbH
Chemnitzer Straße 1
D-68309 Mannheim
e-mail: info@lapis-online.de
phone: +49(0)621/7363866
Products
Contact

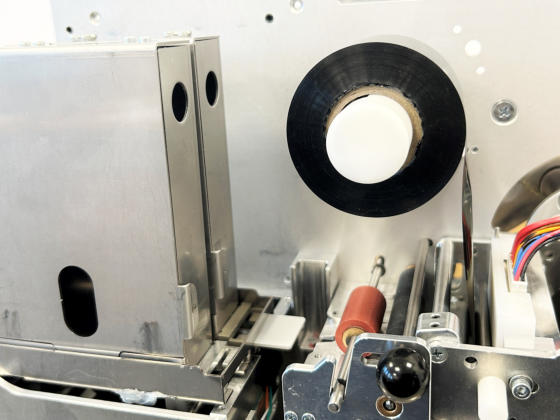

Optional:
•
Dual slide magazine
•
Holds up to 100 slides each
•
Exchangeable magazines for different colors
