Lapis Drucktechnologie GmbH

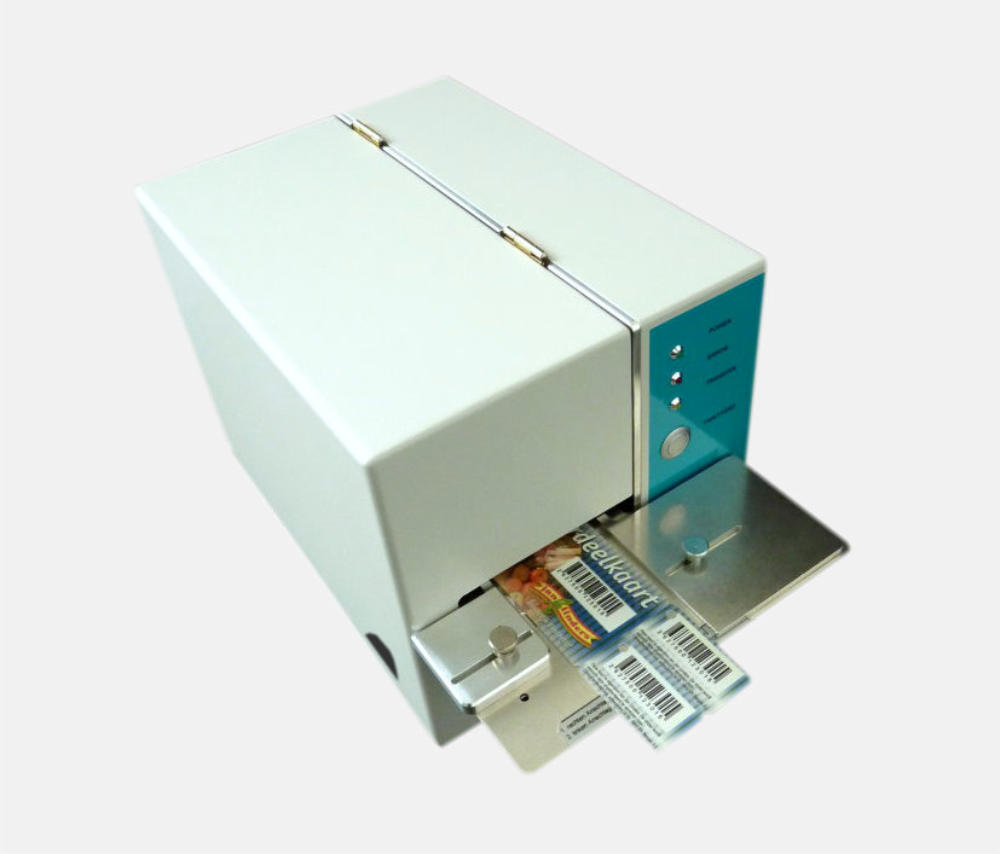

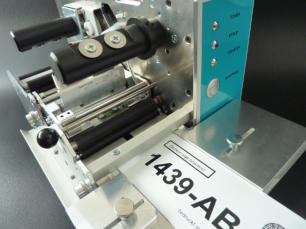

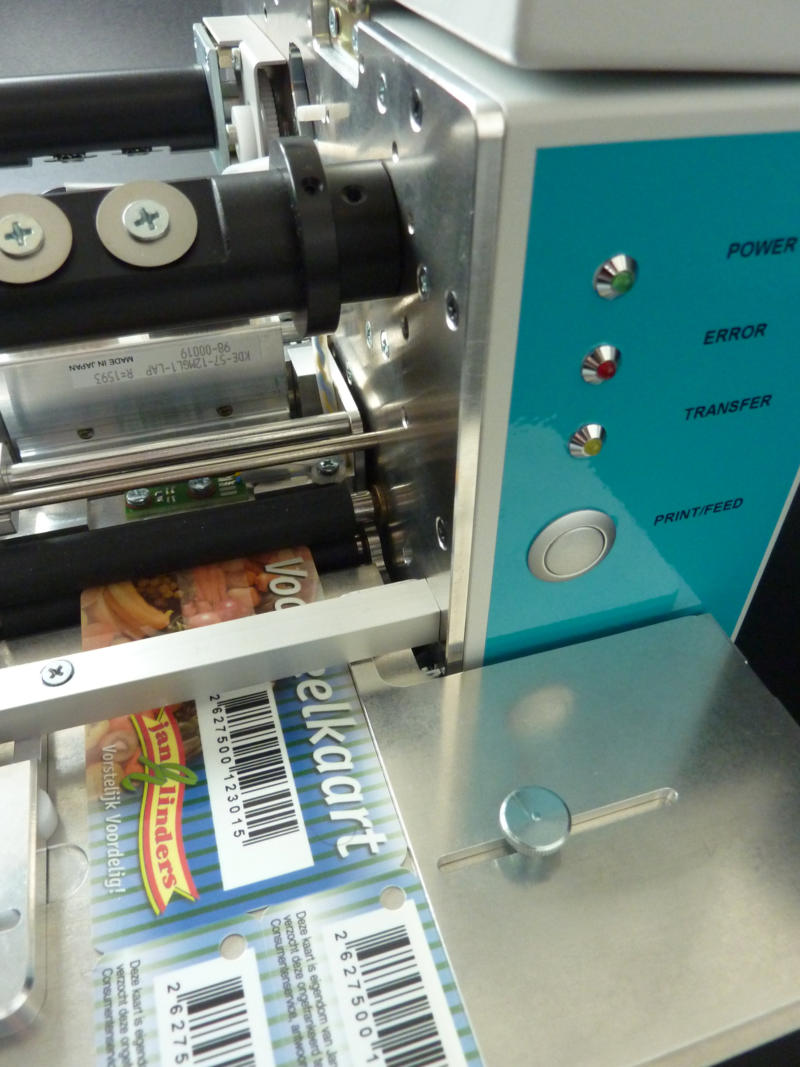

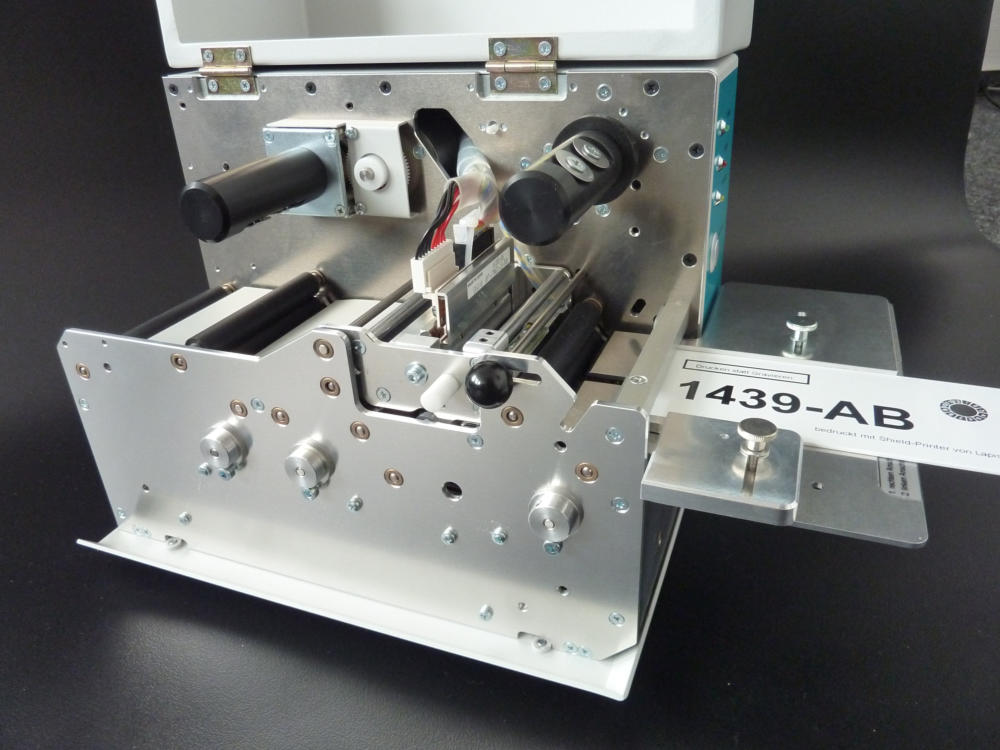

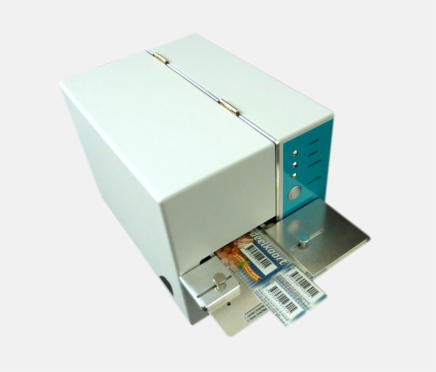

Card Printer SHIELD Flexible monochrome printer for different card sizes and Microscope Slides
Monochrome card-printer for plastic cards, cardboards of various sizes and Microscope Slides. Robust machinery in metal casing for demanding industrial and commercial applications. Replaces the obsolete engraving technology. Card lengths of up to 300mm and card thickness of up to 1,5mm make the Shield-Printer a versatile multi-talent. An optional feeder with up to 120 cards storage capability can be added.
Printer Direct-to-card thermal transfer Single-sided printing full surface printing Monochrome printing capability 300dpi (11,8 dpm) Card Card Type: PVC and composite PVC cards Card Thickness: 0.1 ~ 1.5mm card Card Format: ISO CR80-ISO 7810 (53.98mm x 85,60mm) and card sizes up to 90x300mm Input card feeder: max. 120 cards (optional) Manual single feed: 1 card input Card eject on the front or back Printing Speed 1400 cards/hr.
Interface USB2.0 (Full Speed) RS232 (Service) Driver & Software Operating system    - Windows 8, 10 Font: True Type Fonts via Windows Drivers Power AC 100V ~ 240V, 50/60Hz Ambient temperature: +10°C to +40°C,                     non-condensing humidity 20-80% Printer Dimension and weight HxWxD(mm): 220x205x280 Weight: 7,2kg
Support
Quality control
Lapis as your reliable partner
Lapis develops and manufactures printers and laminators as stand-alone units or as OEM-modules for governmental institutions, industry clients, and organizations. Read more…
All working steps are checked by the production up to the dispatch about a strict high-class control and are held on.
Beside software, drivers and firmware we offer to you here also detailed documentations to our products to the download. Read more…
All contents copyright 2018 Fa. Lapis All rights reserved.
Lapis Drucktechnologie GmbH Weinheimerstr. 62 D-68309 Mannheim e-mail: info@lapis-online.de phone: +49(0)621/7363866 fax:       +49(0)621/7363868
Products
Contact
Lapis Drucktechnologie GmbH
Printing Standard Microscope Slides 76 x 26mm, 1mm thick and 45° ground edges with coloured coated end of 20mm as print area. An optional feeder for 100 slides is in preparation.
