Laminates all pages of a passport, including the inside of the cover. Using a temperature- controlled heating roller, an extremely thin
hologram foil is applied onto the paper surface. The laminator can be integrated in an automated personalization system or used as
a stand-alone system. Various machinery specifications allow for passport-feed from the left, the right, or the front.
Technical Data
•
Foil: 80mm out diameter, 500 pages/roll
•
Throughput: 2 passports / minute (average)
•
Adjustable speed: 4- 20mm/s
•
Adjustable temperature: 150 - 190°C
•
Dimension: 320 x 370 x 340mm (HxWxD)
•
Weight: 16 kg
•
Power supply: 110 - 230 Volts, 50 - 60 Hz
•
Power consumption: 100VA
Features
•
Temperature controlled hot rolling process
•
Laminate on ICAO standard page size
•
Laminates continuous holographic pattern or customized pattern
with synchronization marks to center the seal on passport page.
•
manually input with input table
•
Panel and interface for operating and controlling
•
Customizable parameters for different passport materials and foils
•
Optional: passport-feed from left or front

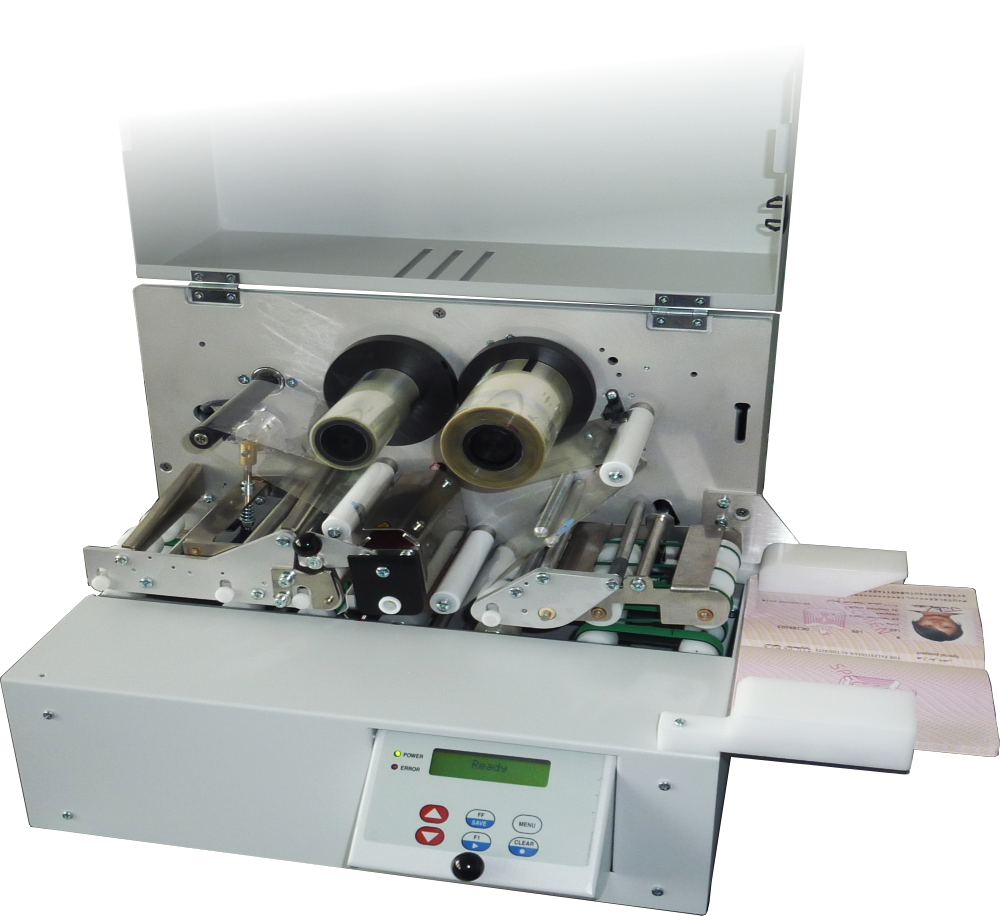

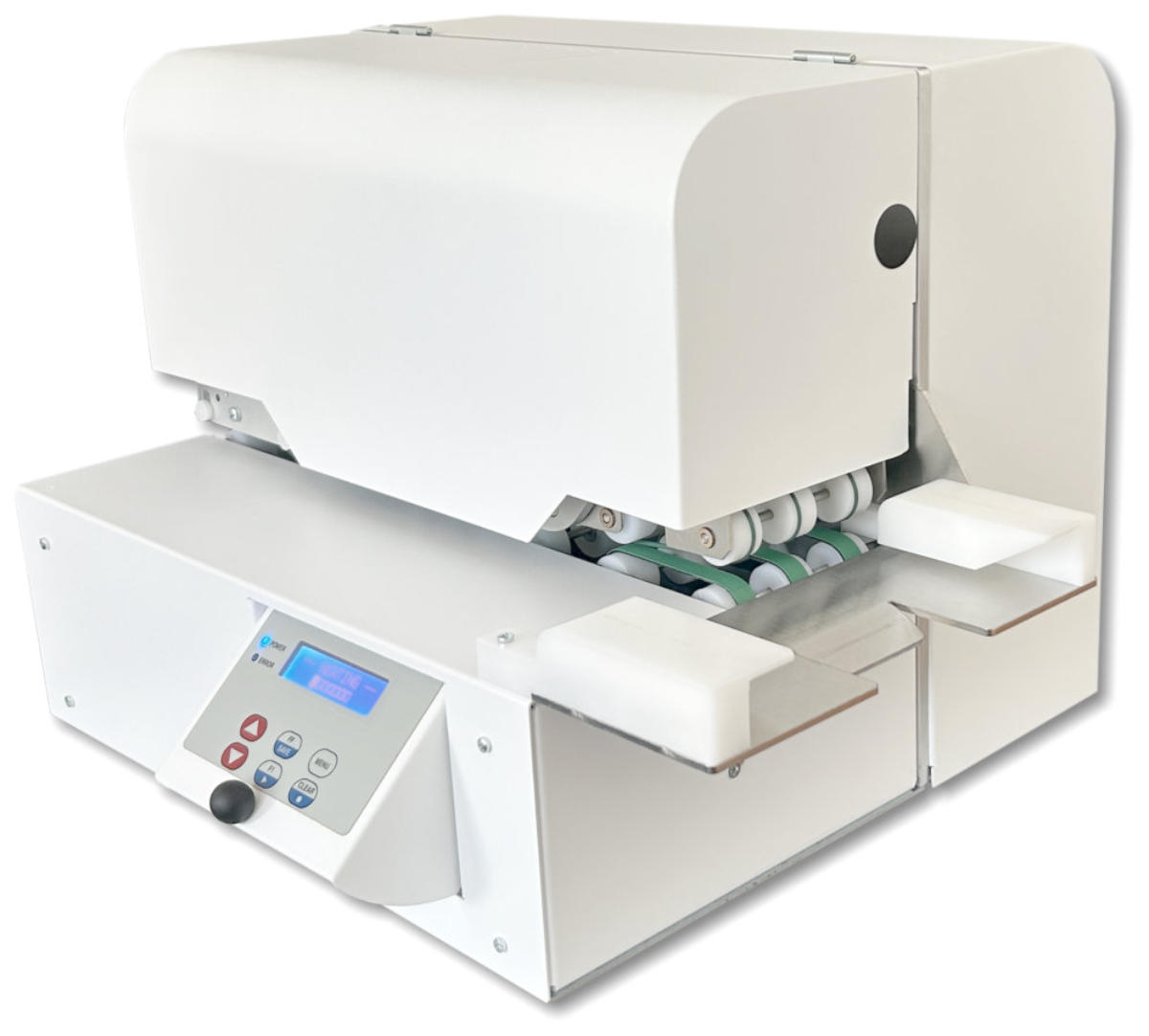

Passport Laminator PL-RL
Flexible laminator for industrial applications
