Technical Data
•
Heated laminating roll, temperature controlled by
sensor
•
Laminating speed: up to 20mm/s
•
Card material: PVC, PE, PC
•
Size: 350 x 300 x 270mm (HxWxD)
•
Weight: 8 kg
•
Ambient temperature: +10°C to +40°C,
non-condensing humidity 20-80%
Features
•
roll laminator, robust metal construction
•
laminate on plastic cards according to ISO 7810 (54 x 85.6 mm)
•
laminates thin film and patch
•
laminates both-sided by automatic detection with different patches
for front and back
•
fed to the laminator in landscape or portrait formats
•
panel, windows-tool and interface for operating and controlling
•
customizable parameters for different card materials and foils
(including temperature and speed)
•
Optional: Card feeder for a maximum of 120 cards.
•
Optional: Flipper for both-sided card lamination.

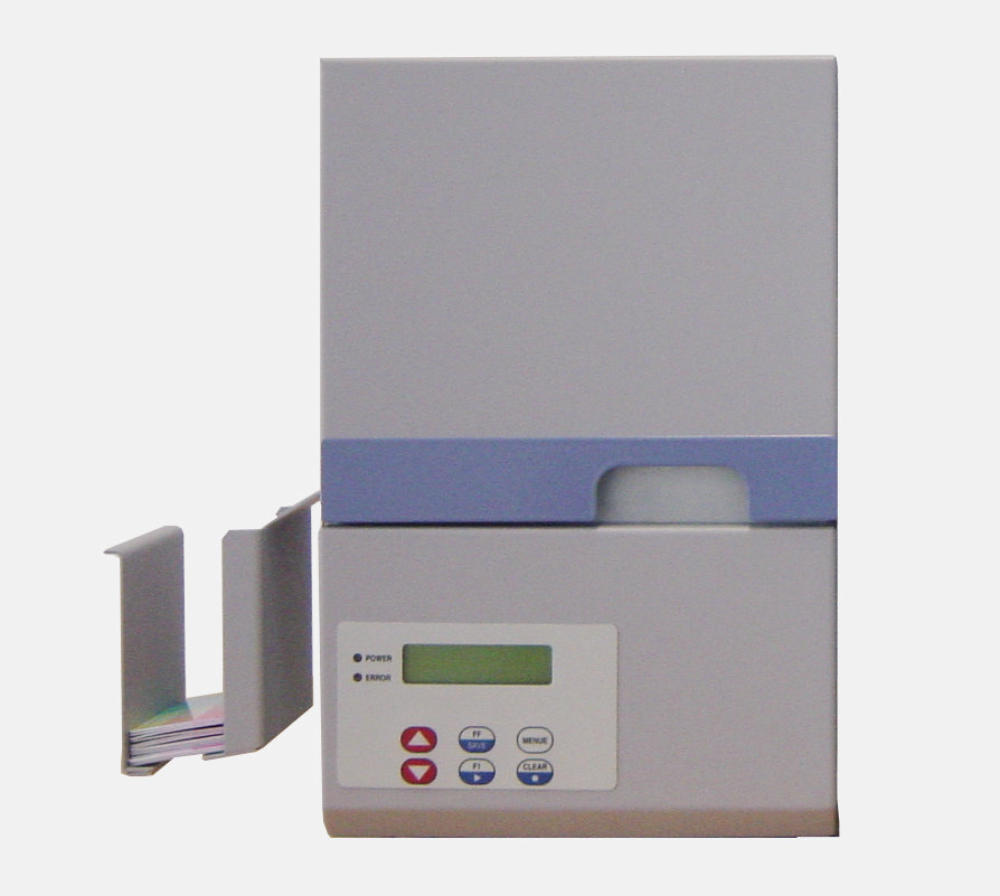

Card Laminator OLM
Flexible laminator for industrial applications
High-end laminator designed as a modular system. Different modules can be combined, enabling a multitude of functions and
processes. For example, both-sided lamination can be done in one or two separate modules depending on the desired per hour
capacity. Also, the cards can be fed to the laminator in landscape or portrait formats, allowing for various printer connections.

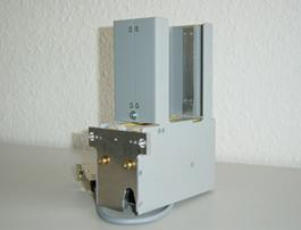

Optional: automatic card feeder
This optional unit is developed for
the OLM to work as standalone
machine with a capacity of 120
ISO standard cards.

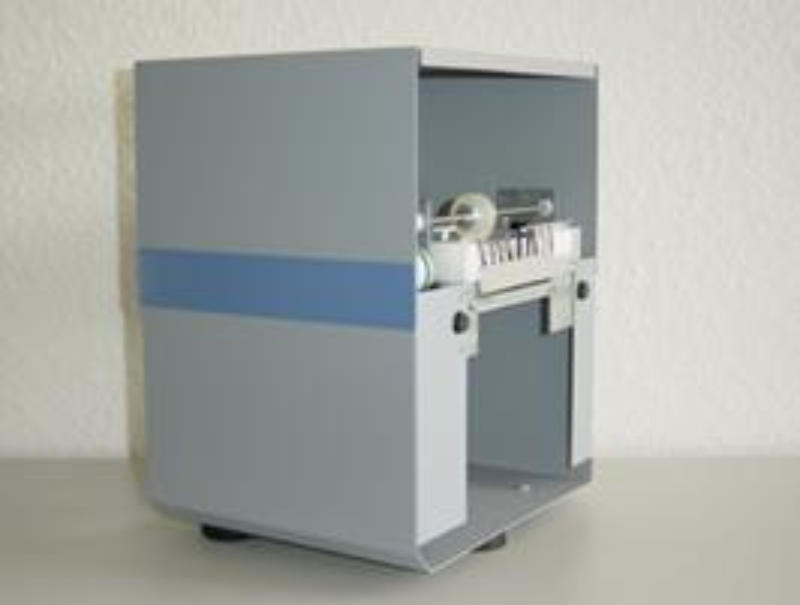

Optional: flip over station
This unit is developed to flip the
card and send it back to the
laminator for both side lamination.
The unit can be mounted at the
laminator entrance or at the output
side of laminator.

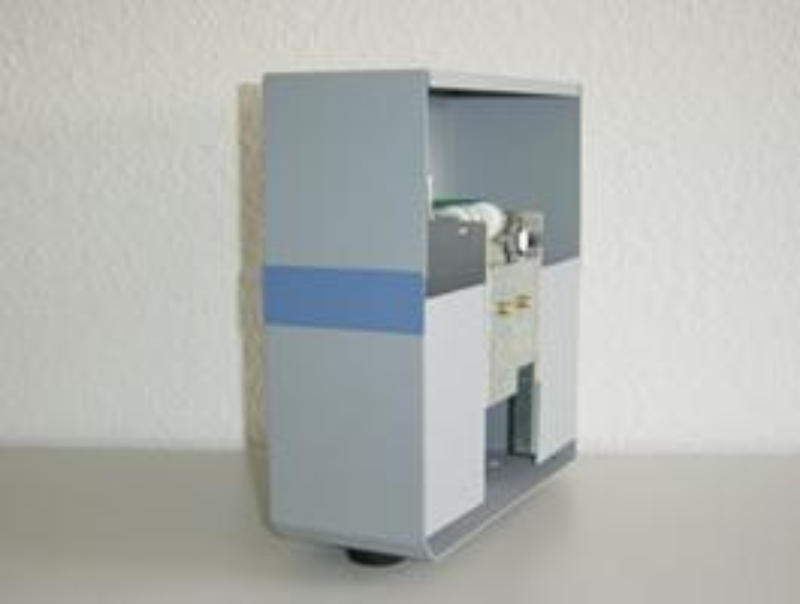

Optional: docking station
The Unit is developed to facilitate
the connection of the laminator to
the printer and to turn the card 90
degrees on center axes.

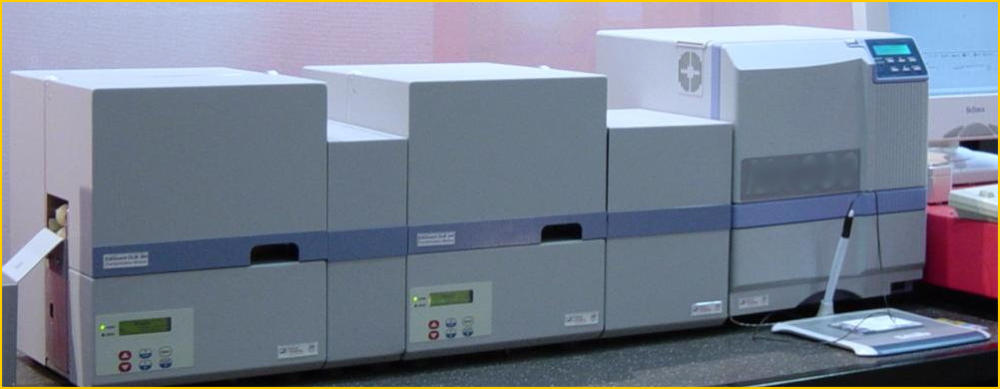

Example:
Printer with docking station, first
OLM for front-side lamination,
flip-module and second OLM
for back-side-lamination.
